Casambi CBU-TED Control
Casambi CBU-TED Control
Couldn't load pickup availability

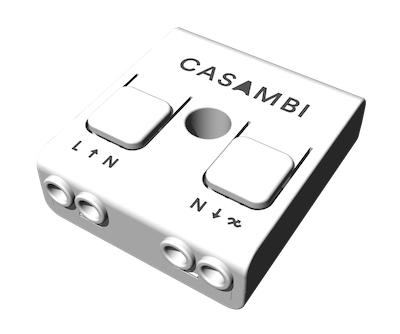

CBU-TED is a Bluetooth controllable, Casambi enabled trailing-edge dimmer for operation of incandescent lamps, dimmable LED lamps and dimmable LED control gear. It can be installed behind a traditional wall switch, inside a luminaire or into a ceiling outlet box. Maximum allowable ambient temperature must be observed.
Input
85-240 VAC 50-60 HZ
and
120 VAC 60 Hz
Output
Incandescent and high voltage halogen bulbs:
100 W @ 230 VAC
50 W @ 120 VAC
High voltage AC LED modules:
100 W @ 230 VAC
50 W @ 120 VAC
Dimmable LED and CFL bulbs:
100 W @ 230 VAC
50 W @ 120 VAC
Dimmable electronic transformers:
100 W @ 230 VAC
50 W @ 120 VAC
Max. output current:
0,43 A
Min. load requirement
1W
Max. inrush current
10 A, 100 ms

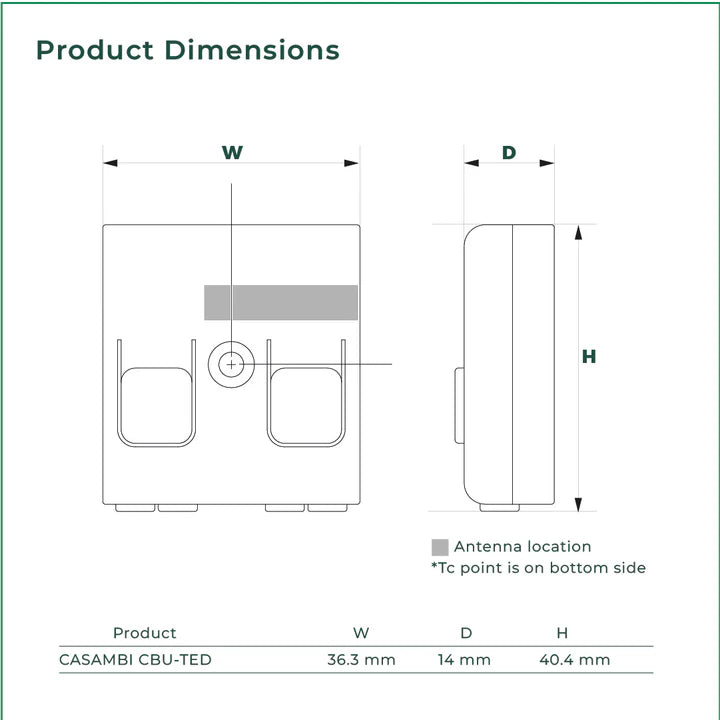

Dimensions
40,4 x 36,3 x 14,0 mm
Protection
IP20
